QJY-J-40MT Low Profile Alignment Scissor Lift
1.Low profile and sub platform bulge design, min height is 128mm,fit for luxury ultra-low chassis vehicles .
2.Main platform cut by laser cutting machine, bent with 1-piece steel plate, platform width 650mm, max lifting height 1880mm.
3. Ramp with punching design, better anti-slip effect.
4. Cylinder with imported hydraulic seal parts, whole machine stable and reliable .
5.Eight-cylinder design, much safer; main platforms with six synchronous cylinders design, platform synchronization leveling adjustment much easier .
6.Control system adopt print circuit board and Siemens electrical parts.
7.Optional: flat-panel platform, without prominence. The minimum height will be 185mm;

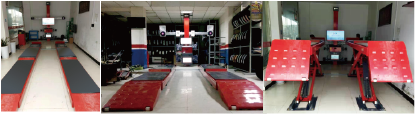

The whole design more suitable for luxury low chassis vehicles. Suit for wheel alignment, vehicle body checking and maintenance .
